Borate fusion is a technique used to prepare various types of samples for subsequent XRF analysis, ICP analysis or AA analysis.

How borate fusion works

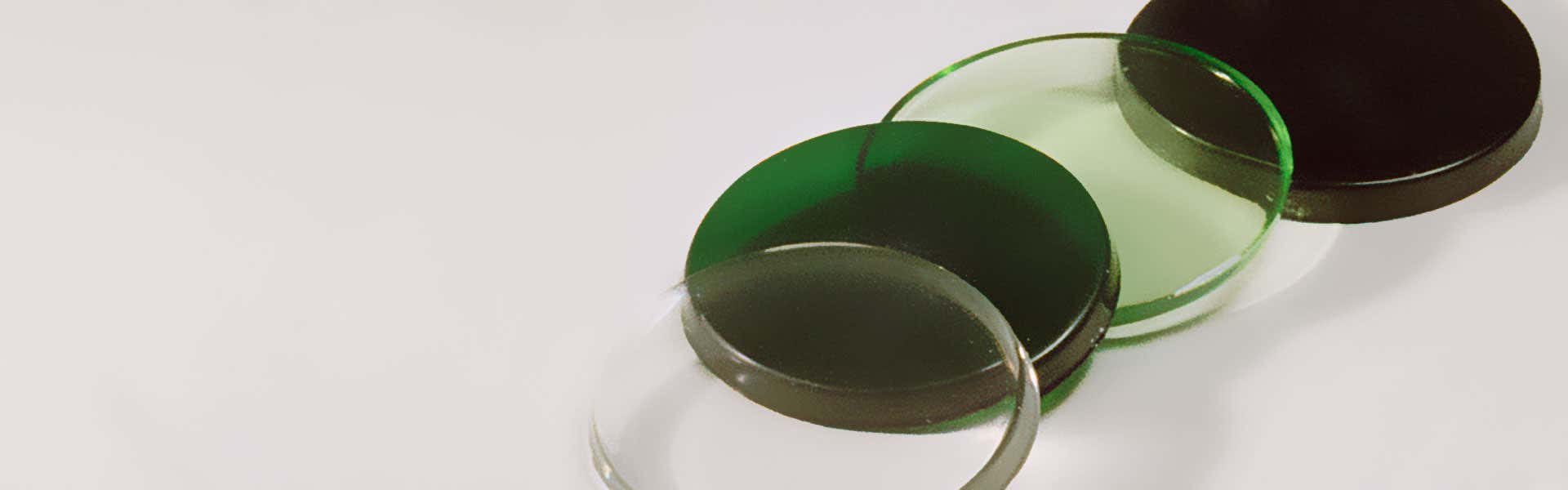

The borate fusion technique consists of mixing a ground sample with a borate flux (lithium or sodium) inside a 95% Pt - 5% Au crucible, heating to 1000 °C with agitation until the flux melts, and then dissolving the sample homogeneously in the flux. When the sample needs to be prepared for X-ray fluorescence (XRF analysis), the hot melt is then cast into a mold and cooled, resulting in a glass disk. The melt can otherwise be poured into diluted acid for subsequent inductively coupled plasma (ICP analysis) or atomic absorption (AA analysis).

Significant benefits that make the difference

Since XRF is a comparative technique, the standards used to prepare the calibration curve have to closely match the characteristics of the unknown sample to provide an accurate and precise analysis. Fusion is the only sample preparation technique that allows you to matrix-match the standards and unknown that cover a wide range of materials. The glass disks prepared by borate fusion lead to XRF analytical results that are far more precise and accurate than the ones obtained with pressed pellets. In addition of being simple, fast and effective, this preparation technique reduces the number of certified reference materials and calibration applications.  Fusion is also well-suited to prepare samples for ICP analysis and AA analysis since unlike common acid digestion techniques, it allows the complete digestion/dissolution of highly refractory materials, ferroalloys and sulfides. It is also safer for the operator (no use of dangerous acids such as HF and HClO4), faster and automated.

Claisse LeNeo

Claisse TheOx Advanced

Claisse Eagon 2

Claisse M4

Claisse LeDoser-12

Claisse LeDoser

Claisse rFusion

Claisse LeNeo

融合におけるClaisseの知識と経験でつねに先を行く

Claisse TheOx Advanced

高い生産性を今すぐ!

Claisse Eagon 2

安全、シンプル、高性能

Claisse M4

融合によるサンプル調製の標準

Claisse LeDoser-12

最適なタイミングでの計量で最適な精度と再現性!

Claisse LeDoser

分析精度をスケールアップ

Claisse rFusion

Claisse rFusionにおまかせください

詳細 詳細 詳細 詳細 詳細 詳細 詳細
加熱モード Electric Electric Electric Gas Gas
1融合サイクルあたりの試料数 1 6 2 3 6
生産性 Glass disks (XRF) : up to 4 per hour; Borate and peroxide solutions (ICP-AA): up to 6 per hour Glass disks (XRF): up to 24 per hour; Borate and peroxide solutions (ICP-AA): up to 36 per hour Glass disks (XRF) : up to 8 per hour Glass disks (XRF): up to 12 per hour; Borate solutions (ICP-AA): up to 24 per hour Runs autonomously for up to 250 weighings (depending on quantity of flux) Runs autonomously for up to 250 weighings (depending on quantity of flux) Glass disks (XRF): up to 24 per hour; Borate solutions (ICP-AA): up to 48 per hour
