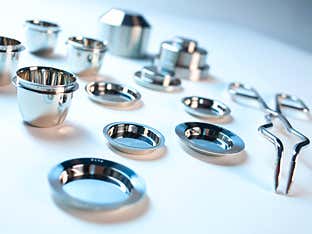

Platinum molds and crucibles

Labware is of critical importance in sample preparation by fusion. Malvern Panalytical offers molds and crucibles made of 95% platinum are 5% gold. They are available in a wide range of sizes and thicknesses to help you obtain the best analytical results.

We also offer nickel and zirconium crucibles for peroxide fusion.

Malvern Panalytical fusion instruments were developed to be used with specifically designed platinumware. All our platinum accessories have been tested and engineered to provide:

  • The best mixing performance.
  • Longer lifetime.
  • Higher success rates in preparation of glass disks.
  • Perfect compatibility with our fusion instruments.
Download brochure
Request a quote Request a demo Contact sales

Molds & Crucibles

Molds Catalog

Catalog NumberMold
P-0230-0030 mm Claisse regular mold, 0.6 mm thick, 18 g
P-0230-0130 mm Claisse heavy mold, 1 mm thick, 30 g
MO3057-B30 mm Claisse optimal mold, 1.2 mm thick, 35 g
P-0232-0032 mm Claisse regular mold, 0,6 mm thick, 21 g
P-0232-0132 mm Claisse heavy mold, 1 mm thick, 36 g
MO3001-0A
32 mm Claisse shallow mold, 1 mm thick, 31 g
MO3009-B-0A
32 mm Claisse Eagon 2 mold, 0.8 mm thick, 33 g
MO3010-B-0A
32 mm Claisse heavy Eagon 2 mold, 1.2 mm thick, 49 g
MO3055-B
32 mm Claisse optimal mold, 1.2 mm thick, 40 g
P-0235-00
35 mm Claisse regular mold, 0.72 mm thick, 25 g
P-0235-01
35 mm Claisse heavy mold, 1 mm thick, 48 g
MO3003-0A
35 mm Claisse shallow mold, 1 mm thick, 36 g
MO3053-B
35 mm Claisse optimal mold, 1.2 mm thick, 40 g
P-0240-00
40 mm Claisse regular mold, 0.8 mm thick, 34 g
P-0240-01
40 mm Claisse heavy mold, 1 mm thick, 48 g
MO3002-0A
40 mm Claisse shallow mold, 1 mm thick, 44 g
MO3011-B-0A
40 mm Claisse Eagon 2 mold, 1 mm thick, 53 g
MO3012-B-0A
40 mm Claisse heavy Eagon 2 mold, 1.2 mm thick, 62 g
MO3051-B
40 mm Claisse optimal mold, 1.2 mm thick, 55 g
Crucibles Catalog

Catalog NumberCrucible
P-0130-03Claisse Optimix™ crucible (with three humps), 30 g
CR3022-BClaisse Optimix™ crucible (with three humps), 30 g
P-0325-00Claisse oxidation crucible, 35 mL, 35 g
P-0330-01
Claisse heavy Bis! crucible, 30 g
P-0120-00
Claisse flat bottom crucible, 20 mL, 24 g
P-0125-00
Claisse flat bottom crucible, 25 mL, 26 g
P-0130-00
Claisse flat bottom crucible, 30 g
CR3010-B-0A
Claisse Eagon 2 flat bottom crucible, 40 g
CR3011-B-0A
Claisse Eagon 2 crucible with dimple, 40 g
CM3001-BClaisse crucimold, 40 mm bottom diameter, 40 mL, 90 g
CM3000-BClaisse crucimold, 32 mm bottom diameter
CR1900-0BZirconium crucible, 25 mL
AC3103-B-0B
Zirconium lid for crucible CR1900
P-0430-02Zirconium crucible, 50 mL
P-0431-02Zirconium lid for crucible P-0431-02
CR3023-BZirconium crucible, 50 mL, usable with FORJ
CR3024-BZirconium lid for crucible CR3023-B
CR1902-0ANickel crucible, 25 mL
AC3119-B-0ANickel lid for crucible CR1902
P-0450-02Nickel crucible, 50 mL
P-0451-04Nickel lid for crucible P-0450-02
CR3025-BNickel crucible, 50 mL, usable with FORJ
CR3026-BNickel lid for crucible CR3025-B

Accessories

Accessories Catalog

Catalog NumberOther Accessories
PRK-RS030
Flat bottom crucible reshaper compatible with P-0130-00
PRK-RS03532 mm shallow mold reshaper, compatible with MO3001
PRK-RS036
40 mm shallow mold reshaper, compatible with MO3002
PRK-RS037
35 mm shallow mold reshaper, compatible with MO3003
PRK-PK001Claisse mold polishing kit (120 V)
PRK-PK002Claisse mold polishing kit (240 V)
P-0600-20
Polishing recharge 1
P-0600-30
Polishing recharge 2
PRK-VM001Claisse VortexMixer™ (110 V)
PRK-VM002Claisse VortexMixer™ (220 V)
