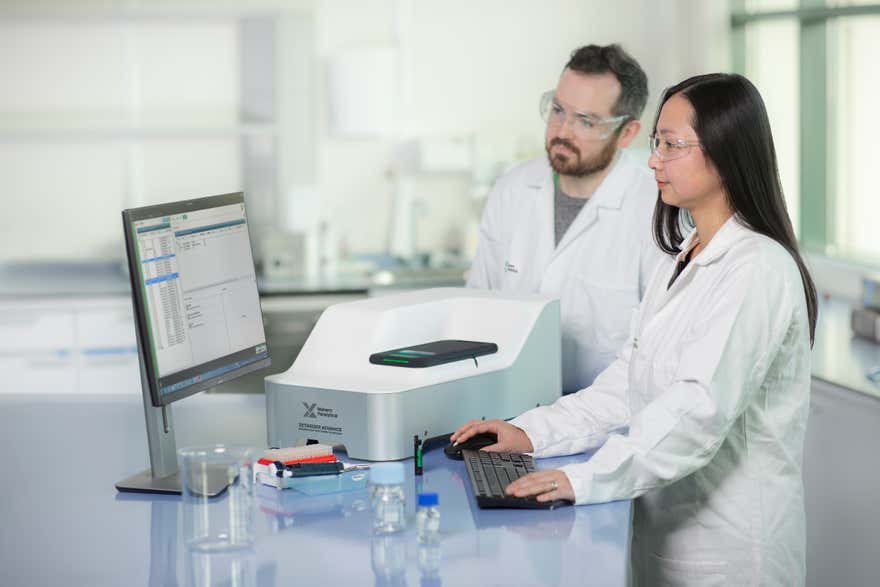

Zetasizer Pro

새로운 Zetasizer Pro는 광범위한 시료 유형 및 농도를 측정하는 데 필요한 기기입니다. 이 제품은 비침습적 후방 산란(NIBS) 광학 설계로 넓은 동적 농도 기능과 높은 감도를 제공합니다. 입자 크기, 분자 크기, 전기영동 이동도, 제타 전위분자량을 쉽게 측정할 수 있습니다.

Adaptive Correlation 기능은 측정 기간을 줄이고 더 많은 시료 지식을 제공하여 시료 처리량을 향상시킵니다. 딥 러닝 기반 데이터 품질 시스템은 자신의 데이터가 최고의 데이터라는 것을 확신할 수 있게 해줍니다.

광학 필터 휠은 전체 기기 민감도에 영향을 주지 않고 형광 시료를 측정할 수 있습니다.

Om_logo.png OmniTrust와 함께 일하기 : Malvern Panalytical의 규정 준수 솔루션

카달로그 다운로드
지원팀 연락처 지금 가입하기

User manuals

Software downloads

08 December 2023

3.31

Maintenance release, updates to key services and addition of Titration summary data logs.


See SUN for full details.



3.31

02 August 2023

3.30

ZS Xplorer version 3.3 extends OmniTrust support to the Studies features of the main application. Previously OmniTrust users were prevented from accessing Studies to prevent un-audited events. From 3.3 OmniTrust users can now access Studies for Molecular Weight and associated parameters with permissions and auditing of events within the Studies features.


Note that Studies by their nature are intended for advanced users and to be flexible in their analysis. Users not requiring Studies features can still prevent access to these features using permissions in OmniAccess.


Version 3.3 also addresses a few minor bug fixes.


See SUN for full details.



3.30

02 May 2023

3.22

ZS Xplorer 3.2.2 has the following updates:



Software re-branded to Malvern Panalytical brand

Minor bug fixes - one of which may have prevented instrument connection

Bug fix for OmniTrust users that meant editing of records was possible, even when user permission for this action was disabled (recommended update for OmniTrust users currently on ZS Xplorer 3.2.1.)

Updated Toluene calibration routine to prevent incorrect reporting of issues with calibration.


See SUN for full details.

3.22

19 December 2022

3.21

ZS Xplorer 3.2.1 adds Smart Instrument enrollment - the first step in bringing Zetasizer into Malvern Panalytical's Smart Manager services.

Several installer improvements have been made to reduce ZS Xplorer requirements around .NET and WebView2 components.

We have also added ability to edit peak thresholds for size measurements and refinements on CSV exporting from parameter tables.


See SUN for full details.

3.21

04 October 2022

3.20

ZS Xplorer version 3.2.0 adds upper and lower display range configuration for Size/MADLS & Particle Concentration measurements.

Introduces Data Quality Advice for MADLS & Particle Concentration measurements.

Adds further Trend analysis improvements and bug fixes.

Extends Japanese and Chinese localization to Studies and Data Quality Advice.

Adds speed and robustness improvements to Scattering standard measurements.

Other improvements and bug fixes.

See SUN for full details.

3.20

11 July 2022

3.10

ZS Xplorer version 3.1.0 extends studies and concentration trend measurements to support the Zetasizer Advance Lab models and also adds the capability to perform concentration trends in either back or side scatter on Zetasizer Advance Ultra models.   Concentration trends also now supports setting of measurement temperature and adds display of R2 value to tables and graphs.

Exporting of data to CSV file from graphs and tables in Concentration trends and from Parameter and Statistic tables in Analyze views has been introduced.

Data quality advice for Zeta potential measurements has been further refined to provide users with better diagnosis of sample/measurement issues.

Exporting a study now provides an option to include the results data for transfer of the complete study between data repositories.

Various bug fixes, see software update notification for details.

3.10

18 May 2022

3.00

ZS Xplorer version 3.0.0 introduces studies and concentration trend measurements for the determination of molecular weight by static light scattering and kD by dynamic light scattering. Note: This first release does not support Zetasizer Lab or OmniTrust users. Auto averaging for Zeta, MADLS and Particle concentration has also been added along with other quality of life features and bug fixes. See SUN for details.

3.00

01 March 2022

2.31

ZS Xplorer version 2.3.1 introduces post-analysis averaging for Zeta, Particle Concentration and MADLS size measurements. Zeta mobility parameters and graphs have



been added, as well as a count rate meter and



localization for Chinese (Simplified) and Japanese language support.

Important: This version supports OmniTrust 1.4.0; OmniTrust users should upgrade their installation to 1.4 if upgrading to ZS Xplorer 2.3.1.

2.31

17 January 2022

2.30

ZS Xplorer version 2.3.0 introduces post analysis averaging for Zeta, Particle Concentration and MADLS size measurements. Zeta mobility parameters and graphs have also been added, as well as a count rate meter.


Important: This version supports OmniTrust 1.4.0; OmniTrust users should upgrade their installation to 1.4 if upgrading to ZS Xplorer 2.3.0.

details.

2.30

14 October 2021

2.20

  • Maintenance release see Software Update Notification for details.
2.20

08 July 2021

2.10

  • ZS Xplorer 2.1 offers improvements to OmniTrust regulated environment users by providing improved control of methods and provision of a method audit trail. This version also provides improvements by provision of major size distribution percentiles and automatic size averaging function. A critical bug that could  affect zeta potential data for very low scattering samples has also been fixed. See the Software Update Notification for more details.

2.10

25 February 2021

2.01

  • Bug fix: Changing sample details on locked methods
    • Fixed a bug around method permissions for OmniTrust regulated environment users that prevented editing of method sample details.
2.01

20 July 2023

1.60

OmniAccess

  • Flexible/configurable roles in Empyrean and Aeris (now aligns with Zetasizer)
  • Summary of roles/permissions
  • Default roles for instrument applications
  • Support for complex domains
  • Wizard for initial set up and massively improved UI to improve configuration/set up

OmniTrail

  • Record Audit trail events viewable in OmniTrail.
  • Show/compare authorization files

More information can be found in the Release and Installation Notes.

1.60

16 December 2021

1.40

OmniAccess

  • Flexible/configurable roles in Empyrean and Aeris (now aligns with Zetasizer)
  • Summary of roles/permissions
  • Default roles for instrument applications
  • Support for complex domains
  • Wizard for initial set up and massively improved UI to improve configuration/set up

OmniTrail

  • Record Audit trail events viewable in OmniTrail.
  • Show/compare authorization files

More information can be found in the Release and Installation Notes.

1.40

악세서리

액세서리

SV-10 점도계

간편하면서 빠르고 정확한 점도 측정

SV-10 은 전기영동에 의한 제타 전위 측정과 확산 속도의 변화에 따른 크기 및 동적광산란에 의한 크기 측정을 위해 간단하면서도 빠르게 점도를 측정합니다.

MPT-3 Autotitrator

Automate your pH titrations

The MPT-3 is a cost-effective accessory for the Zetasizer Advance range, designed to automate your Zeta and/or Size vs. pH titrations, helping you understand how your materials behave as a function of pH.

The zeta potential and/or size of your materials with pH changes can be critical in understanding:

  • Material stability
  • Agglomeration
  • Flocculation
  • Point of net-zero charge (isoelectric point)
  • Storage conditions

셀 및 큐벳 옵션

일회용 folded capillary 셀 (DTS1070)

일회용 셀을 사용하여 제타 전위 측정 중에 교차 오염을 제거합니다.

콜로이드와 분자의 제타 전위 값은 측정 셀의 이전 시료 구성 성분으로부터의 오염에 극도로 민감합니다. 일회용 셀의 사용은 이러한 잠재적 오염 문제를 완전하게 제거하여 줍니다.

접힌 캘필러리 셀은 일회용으로 사용의 편리성과 측정의 정확도를 보장합니다.

필요한 경우 전극을 포함한 일회용 셀은 낮은 전도도를 갖는 시료에 대해 반복 사용이 가능합니다.

셀은 폭넓은 pH범위에서 복잡한 반복 측정을 할 수 있는 자동 적정기와 함께 사용될 수 있습니다.

Universal 'dip' 셀 kit

재사용이 가능한 용매에 강한 셀

Dip 셀은 수성 및 비수성 분산제의 시료 제타 전위에 사용 가능하여 세척하여 재사용할 수 있도록 설계되었습니다. 이것은 표준 폴리스틸렌 또는 유리 큐벳을 사용하여 배치 측정이 가능합니다.

고농도 제타 전위 측정용 Kit

시료의 희석 없이 제타 전극을 측정하여 시간과 노력을 줄입니다.

고농도 셀은 Zerasizer Nano를 이용한 제타 전위 측정에서 시료의 희석을 요구하지 않습니다.

셀은 흐름을 정할 수 있어 정지 흐름에서 크기 측정과 MPT-2 자동 적정기를 사용하여 일관 제타 전위 측정을 할 수 있습니다.

12mm 정사각형 유리 셀(PCS8501)

유리 재질 큐벳

  • 크기 및 분자량 측정
  • 수계, 비수계 용매 및 분산제와 호환

12mm 유리 셀(PCS1115)

Dip 셀과 함께 사용할 유리 큐벳

  • 'Dip' 셀을 사용한 크기 및 제타 전위 측정
  • 수계, 비수계 용매 및 분산제와 호환

소용량 석영 재질 큐벳(ZEN2112)

크기 및 분자량 측정용 소용량 석영 재질 큐벳

  • 수계, 비수계 용매 및 분산제를 사용한 크기 및 분자량 측정과 호환
  • 최소 시료량 12 마이크로리터
  • 최대량 45 마이크로리터

12mm 정사각형 폴리스티렌 큐벳(DTS0012)

일회용 폴리스티렌 큐벳

  • 교차 오염을 방지하기 위한 스토퍼 100개를 갖춘 일회용 셀 100개.
  • 수계 분산제를 사용한 크기 측정.
  • Dip 셀을 사용한 제타 전위 측정과 호환

일회용 유기용매용 마이크로 큐벳(ZEN0040)

173°(NIBS) 시스템 전용으로, 크기 측정을 위한 일회용 플라스틱 마이크로 큐벳

  • 교차 오염을 방지하기 위한 캡 100개를 갖춘 40µL 큐벳 100개
  • 수계 시료 및 광범위한 다른 용매(아세톤, 벤즈알데히드, 부탄온, 디옥산, DMF, 초산 에틸, 이소프로판올 및 다양한 산과 염기)와 호환
