Axios FAST
優れたサンプルスループット
多元素の化学組成を数秒で解析
緊急を要するプロセス管理やサンプルの高スループット実行のために、化学組成の非破壊解析を数秒で実行する必要がありますか? 最大28種類の元素がppmから100%までの濃度範囲で同時に測定される場合、Malvern Panalytical Axios FAST同時WDXRF分光計は理想的なソリューションです。 正確なロバスト解析、経験の浅いスタッフでも簡単なオペレーション、高い稼働率は、低い所有コストと密接なつながりがあります。
緊急を要するアプリケーションで速く結果を得る
わずか数秒で解析結果を得ることができるため、Axios FAST元素分析装置は、緊急を要するアプリケーションや高サンプルスループットの解析環境で理想的なツールです。 主なアプリケーション分野には、鉄鋼や金属合金生産が含まれます。また、毎日数百のサンプルを解析する必要がある地質研究所や民間研究所も含まれます。
機能
優れたサンプルスループット
高速サンプルハンドリングと卓越した操作時の信頼性を提供するAxios FAST同時型XRF分析装置は、高速分析制御に最適な選択肢です。
- ターレット機構による連続装填
- 168ポジションVRCサンプルチェンジャとフルオートバッチ分析が可能なフレキシブルトレイローディング
- ダイレクトローディング
- 迅速かつエラーフリーのサンプル装填およびデータ入力を実現するサンプルバーコードリーダー
優れた性能
- 最大28元素の同時測定と、サンプルあたり最短2秒の測定時間
- 軽元素分析用の高感度HiPerチャネル
- 最大4つのゴニオメータによる優れた分析柔軟性
- 各種X線アノード材(Rh、Cr、Mo、Au)により特定のアプリケーションで最高の性能を実現可能
優れた装置稼働率
工程管理に不可欠な分析装置として開発されたAxios FASTは、最高の品質基準をクリアするように製造されており、ダウンタイムを防止および最小限に抑える革新的なテクノロジが採用されています。
- 管球ドリフトを排除し、校正メンテナンスを低減するZETAテクノロジ搭載のSST-mAX
- X線管球の耐久性と耐腐食性を高めるCHI-BLUE X線管球ウィンドウコーティング
- 測定前にサンプルから粉塵を除去してシステムへの粉塵の侵入を最小限に抑え、最高の稼働率を実現するダストリムーバルデバイス
- チャネルが外部に装備されたコンパクトな測定チャンバ: 真空システムを取り外すことなく重要なコンポーネントに自由にアクセスしたり、メンテナンス後に迅速に安定させることが可能
ユーザーの介入を最小限に抑える実績のある専用ソフトウェア
Axios FASTは、実績のあるMalvern PanalyticalのSuperQ XRFソフトウェアの最新バージョンを使用してオペレーションを実行します。このソフトウェアは非常にわかりやすい操作インターフェースとメニューを備えており、 初めて使用する方でもすぐに操作方法を習得してルーチン分析を実施できるとともに、経験豊富なユーザーの要件にも応えられる分析能力と機能を備えています。
自動化対応
Axios FASTの専用ソフトウェアおよびハードウェアインターフェースにより、サンプル搬送装置およびホストコンピュータに柔軟に接続して、完全に自動化された分析を行うことができます。 Axios FASTは、OESとWDXRFを組み合わせるTEAMworks (Total Element Analyzing Module)ソリューションの基盤ともなります。
アプリケーション
秒単位の速さが重要な解析向け
Axios FASTは、鉱業サンプル(Fe-ore、Ni-oreなど)の解析を抱える、サービスラボのような高スループット環境や、(迅速なサンプル解析が必要な)鉄鋼業に含まれる広範な生産および品質管理アプリケーションでその分析能力を発揮します。 典型的なアプリケーションには、低合金/フェライト/オーステナイト鋼の広範囲のキャリブレーション、アルミニウム合金の広範囲のキャリブレーション、チタニウム合金の広範囲のキャリブレーション、低合金鋼の解析、ステンレス鋼の解析、工具鋼の解析、鋳鉄の解析、および溶融ビーズとして前処理された鉄鉱石サンプルの解析があります。
仕様
サンプルハンドリング | 関連性能 | 稼働率 | |
---|---|---|---|
バーコードリーダー | SST-mAX (160 mA)管球 | 最大 28チャネル | Panassist |
連続装填 | ZETAテクノロジ | 最大 4か所のゴニオメータポジション | ダストリムーバルデバイス |
ダイレクトローディング | CHI-BLUEコーティング | 高い計数率(最大3 Mcps) | |
VRCチェンジャ
• 168ポジション | Iso-Watt切り替え | HiPerチャネル |
アクセサリ
Axios FAST

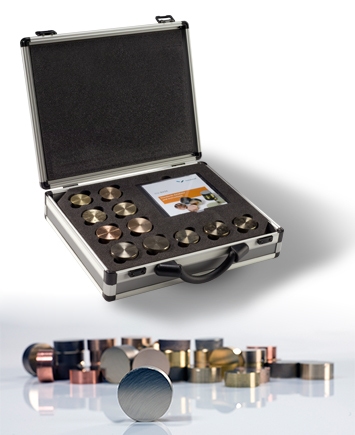

標準試料(リファレンス材料)
Cu-base-FP
Accurate elemental analysis of Cu metals
‘Copper-base’ (Cu-base) is a term used to describe a range of alloys where Cu is the principal component. In order to make the materials suitable for different applications (e.g. the manufacture of coinage, bells, a wide range of mechanical equipment and electrical wiring), Cu is normally alloyed with elements such as Sn, Zn, Ni, Al, and Pb. During the production process fast chemical analysis is needed to minimize errors in production and to maximize production yield. The Cu-base-FP package (including applicable calibration standards) covers the analysis of this wide range of Cu alloys by using the Fundamental Parameter (FP) model.
Fused Borate Disks
Calibration made easy!
Customized Fused Borate Disks for the calibration and monitoring of XRF applications.
Claisse has a new turn-key solution for your XRF applications. Our fused borate disks are made with Certified Reference Materials (CRM) or customized mixtures of synthetic oxides. They are custom-made to fulfill your personal analytical needs.
NiFeCO
The NiFeCo module and setup samples are ideal for calibrating the Zetium spectrometer for the analysis of high temperature steels and super alloys.
フラックスと化学物質
Borate fluxes and chemicals
Your first choice to fuse samples for XRF, ICP and AA analysis
As the one-stop shop in fusion and the world leader in the production of borate fluxes, Claisse develops high-quality chemicals that are easy to use and that ensure no contamination.
Offered in two grades of purity (pure 99.98+% and ultra pure 99.995+%) and available with or without non-wetting agents, our lithium borate fluxes are homogeneous and available in bead format.
Use Claisse lithium borate fluxes to:
- Avoid crystallization
- Reduce the incidence of glass sticking to the platinumware
- Avoid cracking
Make your life easier, try our pre-weighed or customized borate fluxes
Fusion monitor
Quick and error-free proactive monitoring for your fusion instruments
XRF laboratories must assure the quality of their analytical results and ensure accurate and precise data by using quality control sample regularly.
Obtaining the wrong analytical results can affect manufacturing and commercial decisions which can be very costly. Moreover, the Fusion-XRF process remains offline until the source of the variability is thoroughly identified and eliminated. When the analytical results are found to be outside the predefined criteria, planned actions must be taken. Since the analytical results can be affected by a large number of factors, troubleshooting steps may oftentimes become expensive and time consuming.
Oxidizers and Non-Wetting agent
Catalog Number | Flux | MSDS |
C-0700-00 | Potassium Iodide, NWA - Crystal, 100 g | MSDS |
C-0700-01 | Potassium Iodide, NWA - Crystal, 250 g | MSDS |
C-0701-00 | Potassium Iodide, NWA - Solution, 15 ml Bottle | MSDS |
C-0701-01 | Potassium Iodide, NWA - Solution, 15 ml Bottle (10-Pack) | MSDS |
C-0710-00 | Lithium Bromide, NWA - Crystal, 100 g | MSDS |
C-0710-01 | Lithium Bromide, NWA - Crystal, 250 g | MSDS |
C-0711-00 | Lithium Bromide, NWA - Solution, 15 ml Bottle | MSDS |
C-0711-01 | Lithium Bromide, NWA - Solution, 15 ml Bottle (10-Pack) | MSDS |
C-0720-00 | Lithium Iodide, NWA - Crystal, 100 g | MSDS |
C-0720-01 | Lithium Iodide, NWA - Crystal, 250 g | MSDS |
C-0740-00 | Sodium Iodide, NWA - Crystal, 100 g | MSDS |
C-0740-01 | Sodium Iodide, NWA - Crystal, 250 g | MSDS |
C-0800-00 | Lithium Fluoride, Crystal, 100 g | MSDS |
C-0800-01 | Lithium Fluoride, Crystal, 250 g | MSDS |
C-0900-00 | Lithium Nitrate (LiNo3) 500 g | MSDS |
C-0910-00 | Sodium Nitrate (NaNo3) 500 g | MSDS |
Pre-weighed fluxes
Have you ever thought about the amount of time you spend weighing flux?
Since we have at heart your entire satisfaction and are committed to ensure efficiency in your laboratory, we now offer our same high-quality fluxes in wide range of weights. The best fluxes on the market can now be pre-weighed to make your life easier and to accelerate the sample preparation step!
プラチナと実験機器
Platinum molds and crucibles
Labware is of critical importance in sample preparation by fusion. Malvern Panalytical offers molds and crucibles made of 95% platinum are 5% gold. They are available in a wide range of sizes and thicknesses to help you obtain the best analytical results.
We also offer nickel and zirconium crucibles for peroxide fusion.
Malvern Panalytical fusion instruments were developed to be used with specifically designed platinumware. All our platinum accessories have been tested and engineered to provide:
- The best mixing performance.
- Longer lifetime.
- Higher success rates in preparation of glass disks.
- Perfect compatibility with our fusion instruments.
