Advancing material characterization through rapid, accurate, and non-destructive elemental analysis with SciAps
Laser-Induced Breakdown Spectroscopy (LIBS) is a cutting-edge analytical technique that enables rapid, non-destructive elemental analysis across various materials and industries. By generating plasma with focused laser pulses and analyzing the emitted spectra, LIBS delivers real-time insights for industries such as mining, manufacturing, environmental monitoring, and pharmaceuticals.
Its strengths include multi-element detection, minimal sample preparation, and adaptability to challenging environments, although careful calibration and data interpretation are essential. As advances in instrumentation and data analytics continue, LIBS is poised to further enhance material characterization and quality assurance in scientific and industrial applications.
Modern instrumentation, including the SciAps Z-Series, exemplifies how manufacturers are leveraging LIBS technology to meet their analytical needs with minimal manual intervention. These developments allow for robust integration into industrial and research workflows, extending the reach and utility beyond laboratory confines.
Laser-Induced Breakdown Spectroscopy (LIBS) is an optical emission spectroscopy technique that uses a focused, high-energy laser pulse to ablate and ionize a minute portion of a material’s surface. The nanosecond-scale pulse creates a micro-plasma that emits light as it cools over a few microseconds. These emissions contain discrete spectral lines characteristic of the elements present, producing a unique elemental fingerprint.
LIBS has been a laboratory mainstay for more than 30 years and can detect nearly every element in the periodic table. Advances in miniaturization have led to handheld analyzers that deliver laboratory-grade elemental identification in the field. Typical handheld systems employ a pulsed laser of several millijoules per pulse at tens of pulses per second, focused to a spot roughly 50–100 µm in diameter. An onboard spectrometer records the ultraviolet, visible, and near-infrared light from the plasma, while software compares the measured lines to reference databases and applies calibration models to quantify concentrations.
The technique offers rapid, repeatable measurements: the plasma emission itself lasts only microseconds, enabling near-real-time analysis once the signal is processed. LIBS is also minimally destructive—each measurement removes only a microscopic amount of material—making it valuable for applications where sample preservation is important, such as cultural heritage studies, trace-element mapping, environmental monitoring, and industrial quality control. With its ability to analyze solids (and, with appropriate setups, powders, liquids, and gases) with little or no sample preparation, LIBS combines speed, versatility, and broad elemental coverage in a single platform.
Laser-Induced Breakdown Spectroscopy (LIBS) measures elemental composition by firing a pulsed, focused laser at a sample to create a tiny plasma. As the plasma cools, atoms emit light at wavelengths unique to each element.
SciAps handheld instruments use this principle in compact, field-ready instruments.
The Z-901 is the core single-spectrometer model (≈200–440 nm), ideal for routine alloy identification. Specialized versions expand its reach: the Z-901 CSi measures carbon and silicon in steels, the Z-901 Li targets lithium in rocks and brines, and the Z-901 Be is configured for beryllium.
The Z-902 adds a second spectrometer to extend coverage to about 190–620 nm, enabling reliable carbon measurement in steels and stainless—critical for PMI and NDT applications.
The Z-903 employs three spectrometers spanning roughly 190–950 nm, providing full periodic-table coverage, including very light elements such as hydrogen, fluorine, oxygen, and nitrogen. It is the choice for geochemistry, mining, and other applications requiring comprehensive elemental analysis.
For brines and other liquids, the Z-9 Liquidator works with a Z-903 to deliver fast, in-field analysis. Only 1–2 mL of sample is needed. The liquid is nebulized into a fine mist that the Z-903 analyzes within seconds, reporting lithium and other key elements on a connected tablet or PC—no dilution required.
Designed for speed and ruggedness, the Z-70 is a single-spectrometer analyzer (≈190–625 nm, or ≈200–420 nm in alloy mode) built for rapid alloy sorting and material identification. Its high-energy 6 mJ laser penetrates paint, oxide, and anodized layers, while an internal air pump keeps the window clean and a slim nosepiece fits tight spaces.
Unified strengths
Across the Z-Series, SciAps combines portable design, robust optics, and optional argon purge to deliver laboratory-quality elemental data in the field. From detecting carbon in steels to measuring lithium in brines or performing full-spectrum mineral analysis, these instruments demonstrate how handheld LIBS can provide fast, accurate results for both routine and demanding applications.
Laser-induced breakdown spectroscopy (LIBS) stands out as a remarkably versatile analytical technology with wide-reaching impact across countless industries. By leveraging rapid, in situ elemental analysis and powerful optical emission spectroscopy, LIBS provides vital insights for sectors as varied as mining, environmental science, pharmaceuticals and metallurgy.
From rock characterization in the field to quality assurance in manufacturing, LIBS delivers efficiency, accuracy, and adaptability for both routine operations and groundbreaking research. Exploring LIBS’s industrial applications reveals the true breadth of this laser-based technique’s transformative power.
Across the mining industry, LIBS is widely used for rapid rock and mineral identification. SciAps analyzers like the Z-903, with full spectral coverage (190–950 nm), enable geologists to identify critical elements such as lithium, rare earths, and gold directly at the sampling site. Traditional methods required shipping samples back to laboratories, incurring delays and potential losses during handling. In contrast, the SciAps Z-series units allow field teams to perform chemical analysis instantly via laser ablation and emission spectra. Mining companies now deploy the SciAps Z-903 to detect lithium in spodumene, assess rare-earth content, or verify ore quality on site—accelerating exploration strategies and reducing operational risk.

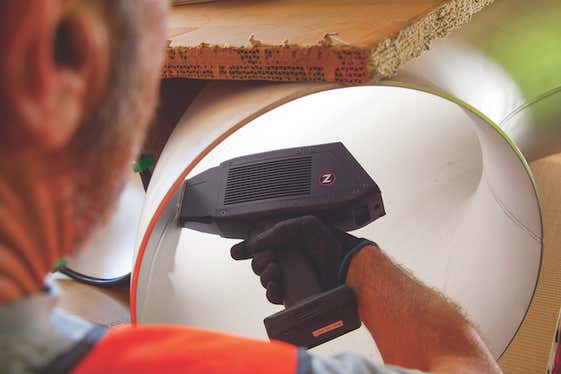

The metallurgical and manufacturing sectors turn to LIBS for alloy verification, impurity detection, and quality control. The SciAps Z-902 Carbon, specifically designed for carbon measurement in steels and alloys, is a breakthrough tool for metallurgists who need fast and precise carbon quantification. Meanwhile, the SciAps Z-901 and Z-70 provide flexible solutions for routine alloy sorting and verification of aerospace, automotive, and high-performance materials. These instruments deliver rapid, reproducible results while consuming minimal sample volume, keeping production lines moving. With advanced onboard software, they also leverage machine learning to detect subtle variations in spectra that could affect material integrity.
Environmental agencies adopt portable LIBS to monitor heavy metals and pollutants in soil, water, and air particulates. SciAps instruments such as the Z-902 and Z-903, with broad elemental range and high sensitivity, are well-suited for detecting contaminants like lead, arsenic, and mercury directly in the field without extensive sample preparation.
SciAps LIBS analyzers are ideal for measuring carbon, including L-grade stainless steel, and other low atomic number elements that XRF analyzers can't measure. They are used to ensure that pharmaceutical manufacturing equipment, such as pipes and reaction vessels, are made of the correct materials, preventing contamination and ensuring process safety.
Forensic labs use LIBS to analyze delicate evidence, including glass shards, gunshot residues, paints, and inks. The SciAps Z-903’s wide spectral range enables forensic scientists to build detailed chemical fingerprints from trace materials, linking samples to their sources with high confidence. Because LIBS requires only a tiny ablation spot, SciAps units preserve the majority of forensic evidence, a critical factor in investigations where material is limited or irreplaceable.
As demand for lithium-ion batteries grows, LIBS plays a central role in quality assurance. The SciAps Z-903’s broad coverage makes it particularly effective for analyzing lithium distribution in electrodes, identifying defects, and verifying uniformity in separator films. These insights help battery manufacturers improve consistency and reduce defects before final assembly, directly impacting performance and safety in energy storage systems.
LIBS is increasingly applied in food safety, quality assurance, and nutritional monitoring. SciAps analyzers like the Z-903 provide comprehensive elemental analysis of agricultural products, detecting nutrients such as calcium, potassium, and magnesium, as well as contaminants like lead or cadmium. With handheld portability, food producers and regulators can test products on-site, reducing reliance on off-site labs and ensuring faster responses to safety concerns.
One of the advantages of LIBS is it can deliver rapid, on-site analysis for virtually any sample, solid, liquid, or gas, without extensive preparation. This capability marks a significant leap over traditional methods in quantitative and qualitative elemental analysis and optical emission spectroscopy. Because the analysis relies on direct laser ablation and induced plasma, results can be obtained in seconds, allowing high-throughput screening, process monitoring, and real-time decision-making in environments such as mining, metallurgy, environmental remediation, and quality assurance manufacturing lines.
Another key advantage is the technique’s minimal invasiveness. Only a microscopic portion of a sample is ablated during each laser pulse, making LIBS especially valuable for rare, irreplaceable, or sensitive materials in art, archaeology, and forensics. As previously highlighted, this gentle yet comprehensive approach means both sample preservation and high data fidelity can be achieved simultaneously, an essential combination where destructive testing isn’t an option. The adaptability of LIBS, underscored by rapid adjustment of analytical parameters via modern software, also means the same system can handle a wide variety of materials and sample morphologies within minutes.
LIBS stands out for its multi-element detection in a single shot, thanks to broadband emission spectroscopy capturing multiple spectral lines at once. This dramatically improves efficiency for applications where multiple contaminants or compositional markers must be monitored simultaneously, as in environmental analysis or complex industrial alloys. Furthermore, by leveraging advanced multivariate analysis, machine learning, and sophisticated calibration routines, LIBS can turn even complex or overlapping LIBS spectra into reliable, actionable information, one of the primary enablers behind its ongoing adoption in both routine and high-stakes analytical workflows.
