PIXcel3D X-ray Detector | 0D-1D-2D & 3D Data

The first detector to bring 0D-1D-2D and 3D data to your diffractometer

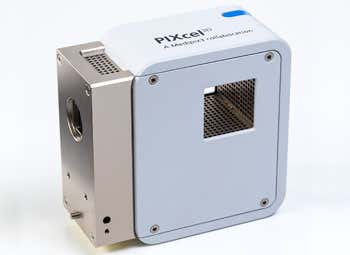

The PIXcel^3D is a unique 2D solid-state hybrid pixel detector. Each pixel is 55 microns x 55 microns and the detector array is 256 x 256 pixels. The detector, now based on Medipix3 technology, brings unrivalled signal to noise with its point spread function of one pixel and multiple energy discrimination levels.

Looking for more information?

To request a quote, more information or download a brochure select an option below.

Overview

The first detector to bring 0D-1D-2D and 3D data to your diffractometer

The PIXcel^3D is a unique 2D solid-state hybrid pixel X-ray detector. Each pixel is 55 microns x 55 microns and the detector array is 256 x 256 pixels. The detector, now based on Medipix3 technology, brings unrivalled signal to noise with its point spread function of one pixel and multiple energy discrimination levels.

Medipix3 technology brings:

An increase in range of detection energies from Cr to Cu
Improved energy resolution
Increased linearity range
Improved detection efficiency
Documented (published) radiation hardness studies.

Specification

Type	PIXcel^3D Detector with Medipix3
Window size	14 mm x 14 mm
Efficiency Cu Kα	>95 %
99% Linearity range	0 – 6.5 x 10⁹ cps – Overall 0 - 25 x 10⁶ cps - Column
Energy resolution around Cu Kα	18%
Maximum count rate	30 x 10⁹ cps – Overall 120 x 106 cps - Column
Maximum background	<0.5 cps - Overall
Active length	14 mm
Smallest step size	0.0016º 2θθ at 240 mm goniometer radius
Supported wavelengths	Cu, Co, Fe, Mn, Cr
Point Spread Function (PSF)	1 pixel (FWHM)
Defective pixels	< 1%
