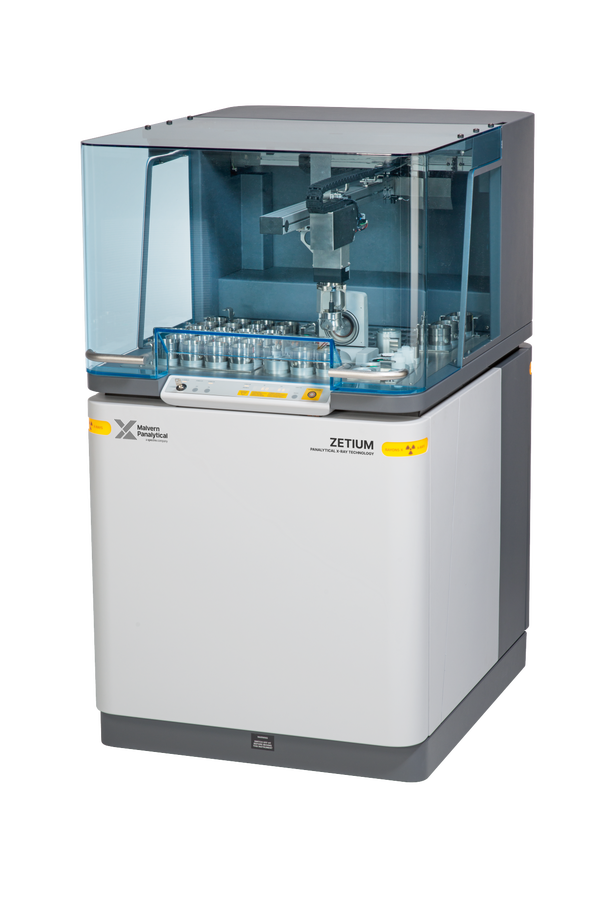

Apply to our Academic Grant Program nowThe industrial benchmark in WDXRF
Best-in-class wavelength‑dispersive XRF, trusted by 90% of leading companies. Precise analysis that stays accurate and operational – 24/7, year after year.
Harsh and remote industrial environments wear down traditional WDXRF instruments. Drifting accuracy, long feedback loops to production, and unplanned downtime lead to rejected batch shipments and rack up significant operational costs. Zetium is engineered to eliminate these risks.
Delivers repeatable results across measurements year after year, enabled by outstanding spectrometer stability.
Built to run continuously in harsh industrial environments with minimal downtime.
Processes up to 240 samples per 8-hour day with zero compromise in precision or lower-limit detection.
Controls and minimize errors at every step, from sample preparation to results, with ready-to-use application packages for accuracy that is reproducible and effortless.
Reduces costs from training, operation, and consumables with streamlined setup and design.
Malvern Panalytical is the only XRF supplier that designs and manufactures certified synthetic standards in‑house. Combining our close collaboration with industrial partners with our unique portfolio of sample preparation solutions and backed by over 60 years of expertise, our off‑the‑shelf and custom solutions ensure ultimate performance, tailored to your industry.
R&D and academic labs deal with unknown materials or a lack of suitable reference materials every day. Zetium offers rapid, non‑destructive analysis with accuracy you can rely on – no in‑type calibration standards required.
Omnian package’s accurate net‑intensity determination, advanced FP algorithm, and in‑house synthetic standards cover elements from O to U for all sample types.
Programmable collimator masks (6-37 mm) and multiple sample holders accommodate different sample sizes.
ED channel enables faster small spot mapping than the traditional WD-based approach, leveraging Omnian with a 0.5mm spot size.
Zetium is a configurable system that can be customized to your application requirements, delivering repeatable accuracy at any point in your workflow.
| Weight | 630kg |
|---|---|
| Power Supply | 220V, 230V, 240V |
| LIMS connection | Yes |
| Sample loading | Single loading, continuous loading, direct loading for fused beads |
|---|---|
| Sample number | Up to 209 sample positions |
| Power | 1kW, 2.4kW, 3kW, 4kW |
|---|---|
| Anode material | Rh, Cr, Mo, Au |
| Tube window | 75um, 50um |
| Primary filter | 4 positions |
|---|---|
| Collimator masks | Up to 6 positions, from 6mm to 37mm |
| Collimators | Up to 3 positions |
| Crystals | Up to 8 positions |
| Detector | 2 positions |
| Features | Simultaneous EDXRF analysis (Na-Am), WD and ED software functions are integrated into SuperQ6.
Up to 2 HiPer channels for simultaneous (ultra)light elements, from B to Mg. Small Spot mapping is available on ED channel. |
|---|
| Sample transfer | Sample can be transferred from left, right and back sides. |
|---|---|
| Sample identification | Barcode reader is available |
Analytical XRF software package
Standardless analysis of all types of samples
Determination of composition and thickness of coatings and multi-layers
Optimize your metal analysis
Securing your data and satisfying auditors
Zetium is installed in 90% of leading companies across the mining, metals, catalysts, chemicals, and cement industries and cited in over 1000 publications.
Experience the industrial benchmark in WDXRF. Zetium protects your operations by delivering:
